Sistema AIGS POCT Life Ready 1000V
Principle
The main pathogens that cause common infectious diseases in pets are viruses, bacteria, mycoplasma and
chlamydia, and parasites, which seriously endanger the health of pets.
The cartridge of the PetReady detection system combines microfluidics, nano-superparamagnetic beads nucleic acid extraction, fluorescence real-time PCR, enzyme and reagent critical state preservation technologies, which is pre-installed with the extraction and amplification reagents, so to realize the fully-closed automatic output from the sample to the gene detection result. It avoids the shortcomings of the conventional molecular detection with false positive results, although with high sensitivity.
Workflow
- Easy manual operation in 2 minutes
- Sample types: swab, body fluid, etc.

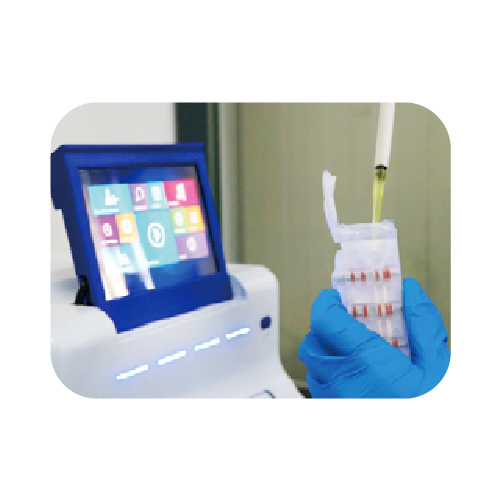

Sampling

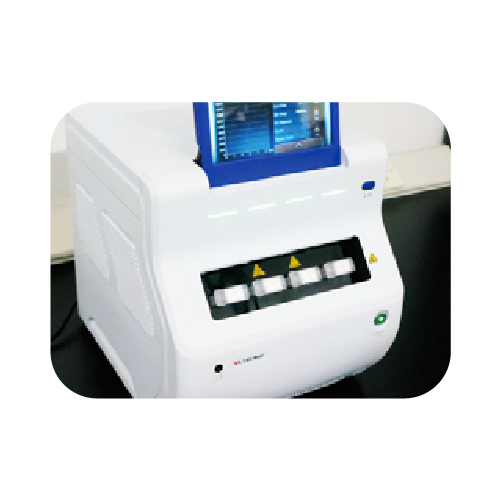

Load cartridge to the machine
Report
Automatic results

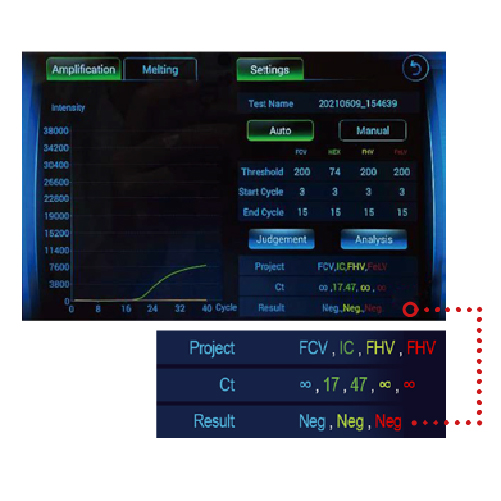

Negative Result

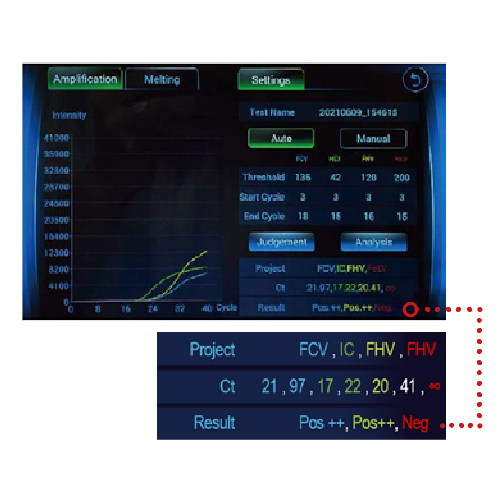

Positive Result
Adventages
Fully-closed Microfluidic Kit, No Contamination
PetReady cartridge with the unique design can control reagents flow in one direction. Owing to the microfluidic valves and sealed separate units, it avoids the contamination. So the system can be placed under the ordinary lab environment
Real-time Fluorescent PCR Technology, High Sensitivity
It combines the specificity and sensitivity of PCR detection technology, which shortens the window period of disease detection, and all the extracted nucleic acids from the sample enter the reaction system, which greatly improves the sensitivity
From sample to report as less as in 1 hour
The whole process, including the extraction, purification, amplification and detection of sample, will be done in about one hour, which shortens the period of detection.
Fully-closed Microfluidic Kit, No Contamination
PetReady cartridge with the unique design can control reagents flow in one direction. Owing to the microfluidic valves and sealed separate units, it avoids the contamination. So the system can be placed under the ordinary lab environment
From sample to report as less as in 1 hour
The whole process, including the extraction, purification, amplification and detection of sample, will be done in about one hour, which shortens the period of detection.
The same instrument, adding multiplex kits, multiple combinations of respiratory and digestive tract tests, meets various testing needs of veterinary and reduces laboratory budgets.
The available kits cover common detection items of pathogens. In addition, there are more kits coming soon.
Compares
Extraction of microfluidic nano-magnetic beads and real-time fluorescent PCR Detection
Lysis
The structure of cells in the sample was broken under the action of heating and reagents, so to release the nucleic acids, which were specifically bound to the nano-magnetic beads.
Extraction
Under the action of a controlled changing magnetic field, nucleic acid substances can be purified through the various different reagents of the microfluidic kit.
Detection
Under the high-precision semiconductor based temperature control, the polymerase chain reaction is carried out. And the nucleic acids are amplified to hundreds of millions of times, finally detected by the low-light photomultiplier tube (PMT) so to get the results.
Comparison With Test Strip
| PetReady system | Test Strip |
|---|---|
| 1-10 viruses can be detected in principle | The estimated volume of tested virus is 106 |
| No window period basically | The window period is 1-2 weeks |
| Accuracy>98% | Accuracy 60%-70% |
| Judge the degree of illness according to the Ct value detected by system | Judge the degree of illness according to the experience or roughly automatically |
Comparison With Other Molecular Diagnostics
| PetReady system | One-step RT-PCR | Portable isothermal amplification method | Extraction + Amplification (Automatic) | |
|---|---|---|---|---|
| Anti-contamination | No contamination | Contaminated Easily | Contaminated Easily | Contaminated Easily |
| Detection Performance | 4 individual channels, detection on-demand | Test one item at one time | Test one item at one time | Test one item at one time |
| Accuracy | Extremely high | Medium | Low | High |
| Sensitivity | Extremely high | Medium | Low | High |
| Sample Pretratment | No | Yes | Yes | Yes |
| Detection Time | About 1 hour | About 1.5 hour | About 1 hour | About 1.5 hour |
A Order information and performance parameters
AIGS
| Model/Order No. | LifeReady 1000 V |
| Light source | LED |
| Detector | PMT photomultipler tube |
| Temperature control module | Semiconductor |
| Block temperature range | 40ºC – 99.9ºC |
| Block temperaure fluctation | ≤ ±0.5 ºC |
| Block temperature accuracy | ≤ 0.5 ºC |
| Temperature display accuracy | 0.1 ºC |
| Dyes | FAM, ROX, Cy5, HEX |
| Display | 7-inch color touch screen |
| Power supply | AC 100-240V, 50/60Hz, 350W |
| Data connector | LAN, USB, WiFi |
| Size | Length 380mm* Width 305mm* Height 343mm |
Recommended Supporting Products
| Products name | Order No. |
|---|---|
| GeneReady Utimate | BSH-CL2 |
| GeneReady T issue P I Kit | KT01-200 |
* Sample type: tissue, feces, other samples that need pre-processing
| Products name | Order No. |
|---|---|
| GeneReady Utimate | BSH-CL2 |
* For shaking and mixing reagents and samples.
| Products name | Order No. |
|---|---|
| Mini centrifuge | Spin Ready 5000 |
* Used for sample centrifugation to get the supernatant.
| Products name | Order No. |
|---|---|
| AccuReady M Single Channel 0.5-10μL | M01020 |
| AccuReady M Single Channel 20-200μL | M01060 |
* For adding magnetic beads, internal standards, samples
Pet’s Single Target Detection Kit
| Products name | Description | Order No. |
|---|---|---|
| Feline Parvovirus (FPV) Detection Kit | DNA | B000SE |
| Feline Coronavirus (FCoV) Detection Kit | RNA | B0008E |
| Feline Herpes Virus (FHV) Detection Kit | DNA | B0009E |
| Feline Calicivirus (FCV) Detection Kit Mycoplasma | RNA | B0010E |
| Feline (MF) Detection Kit Chlamydia Feline (CF) | DNA | B0011E |
| Detection Kit | DNA | B0012E |
| Feline Leukemia Virus (FeLV) Detection Kit | RNA | B0013E |
| Products name | Description | Order No. |
|---|---|---|
| Canine Distemper Virus (CDV) Detection Kit | RNA | B0002E |
| Canine Parvovirus (CPV) Detection Kit | DNA | B0003E |
| Canine Coronavirus(CCV) Detection Kit | RNA | B0004E |
| Canine Herpes Virus (CHV) Detection Kit | DNA | B0016E |
| Rabies Virus (RV) detection kit | DNA | B0022E |
| Canine Adenovirus (CAV-1, hepatitis) Detection Kit | DNA | B0023E |
| Canine Adenovirus (CAV2- , respiratory tract) Detecton Kit | DNA | B0024E |
| Canine Heartworm (Di) Detection Kit | DNA | B0026E |
| Products name | Description | Order No. |
|---|---|---|
| Tox Gondii (Tox) Detection Kit | DNA | B0015E |
| Leptospira (Lept) Detection Kit | DNA | B0016E |
| Barton’s Disease (Bar) Detection Kit | DNA | B0017E |
| Mycoplasma Haemophilus (Mha) Detection Kit | DNA | B0018E |
| Bordetella (BB) Detection Kit | DNA | B0019E |
| Babesia virus Detection kit | DNA | B0030E |
| Products name | Description |
|---|---|
| Feline Parvovirus (FPV) Detection Kit | DNA |
| Feline Coronavirus (FCoV) Detection Kit | RNA |
| Feline Herpes Virus (FHV) Detection Kit | DNA |
| Feline Calicivirus (FCV) Detection Kit Mycoplasma | RNA |
| Feline (MF) Detection Kit Chlamydia Feline (CF) | DNA |
| Detection Kit | DNA |
| Feline Leukemia Virus (FeLV) Detection Kit | RNA |
